K-TYPE R

Chimney compact unit with rotary recuperator

▴ Compact air handling unit with heat recovery
▴ Variant for outdoor operation
▴ Minimum dimensions

Basic description

▴ Rotary recuperation exchangers with high efficiency
▴ For ventilation of family houses, offices, shops, restaurants, etc.
▴ Mixing flap option
▴ Low noise construction, five sizes
▴ Integrated control
   - Digital controller
   - Calendar, manual control, off-set
   - CO2 inputs, humidistat, external switching of max. speed
   - MODBUS RTU, Ethernet - control via internet
▴ Filtration class F7/M5 as a standard - other variants possible
▴ Possibility of heating (internal) and cooling (external)
▴ Constant pressure and constant flow control

Blocks of K-TYPE R 40 units (DWG)
Other documents can be found in the Download section.

Technical Specifications

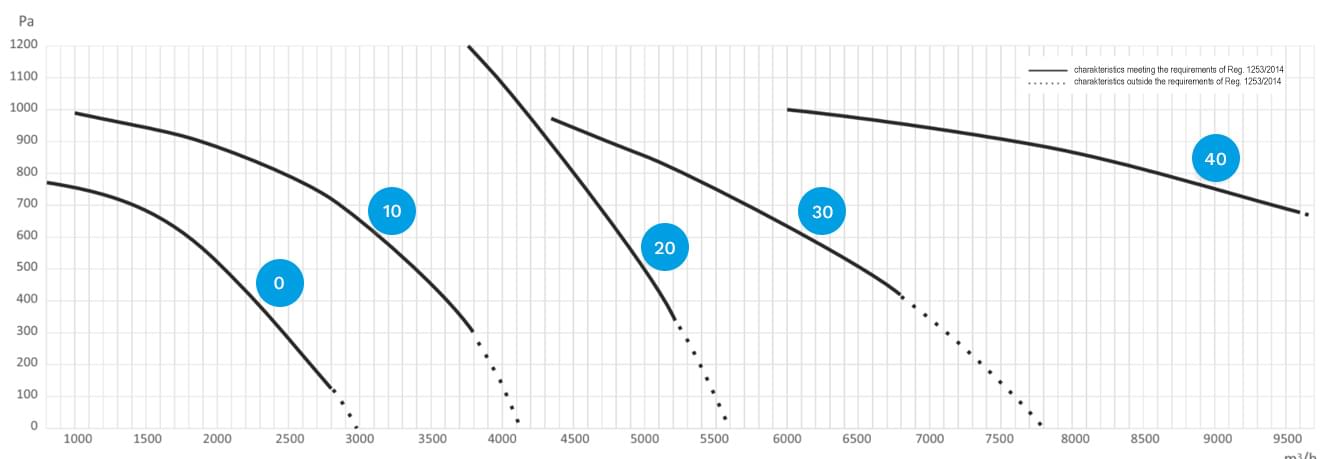

Example power curves

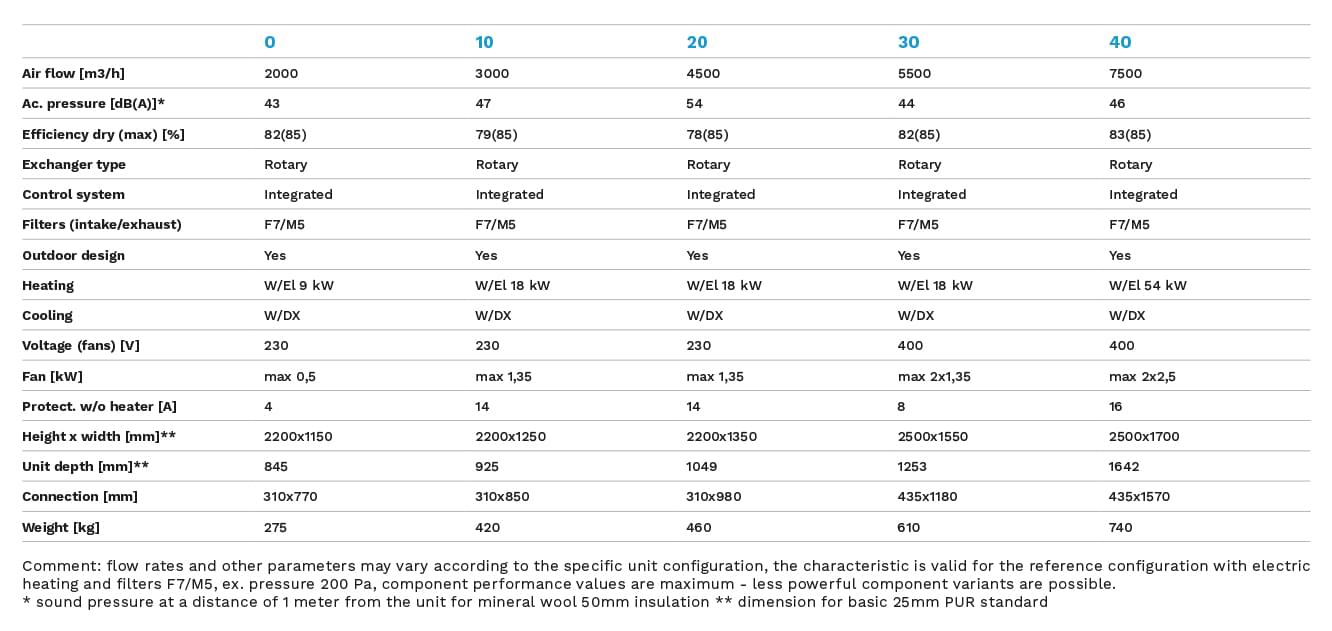

Table of technical parameters
