P-TYPE K

Universal compact unit with plate counter-current recuperator

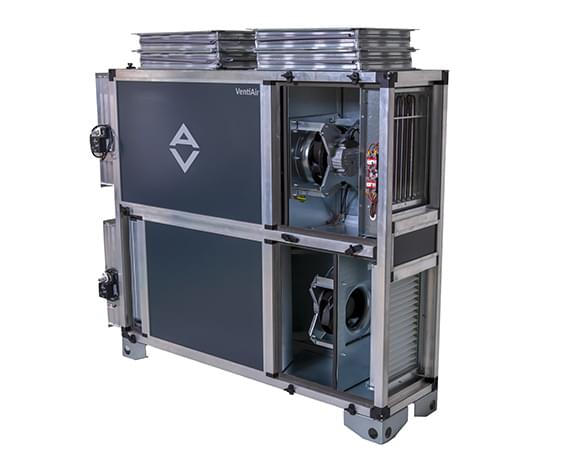

▴ Compact air handling unit with heat recovery

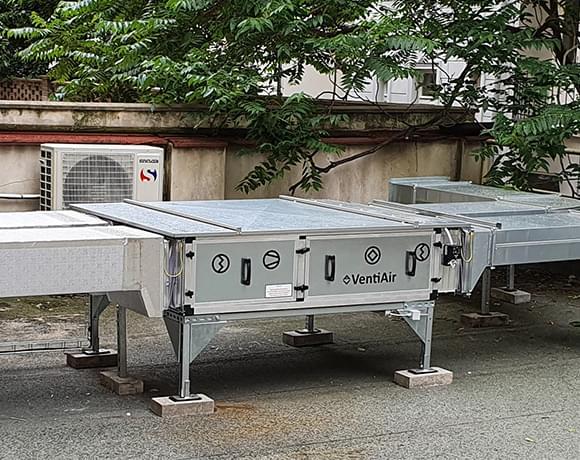

▴ Variant for outdoor operation
▴ Minimum dimensions

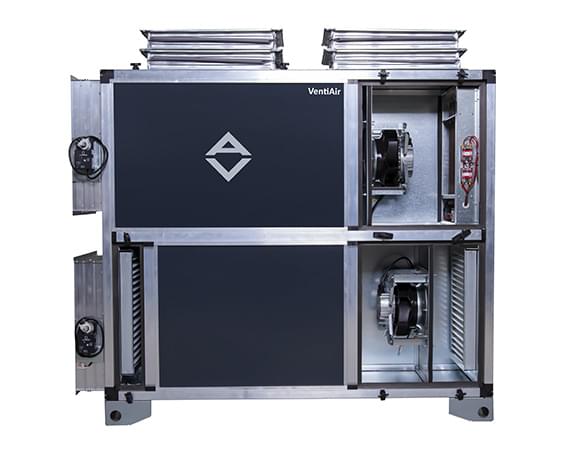

Jednotka VentiAir P-type K

Basic description

▴ Counter-flow recuperation heat exchanger with high efficiency
▴ For ventilation of offices, shops, schools, restaurants, etc.
▴ Integrated by-pass damper, mixing damper as an option
▴ Low noise construction, 8 sizes
▴ Integrated control
   - Digital controller, calendar, manual control, off-set
   - CO2 inputs, humidistat, external switching of max. speed
   - MODBUS RTU, Ethernet - control via internet
▴ Filtration class F7/M5 as a standard - other variants possible
▴ Possibility of heating (internal) and cooling (external)
▴ Constant pressure and constant flow control

Blocks of P-TYPE K 600 units (DWG)
Other documents can be found in the Download section.

Technical Specifications

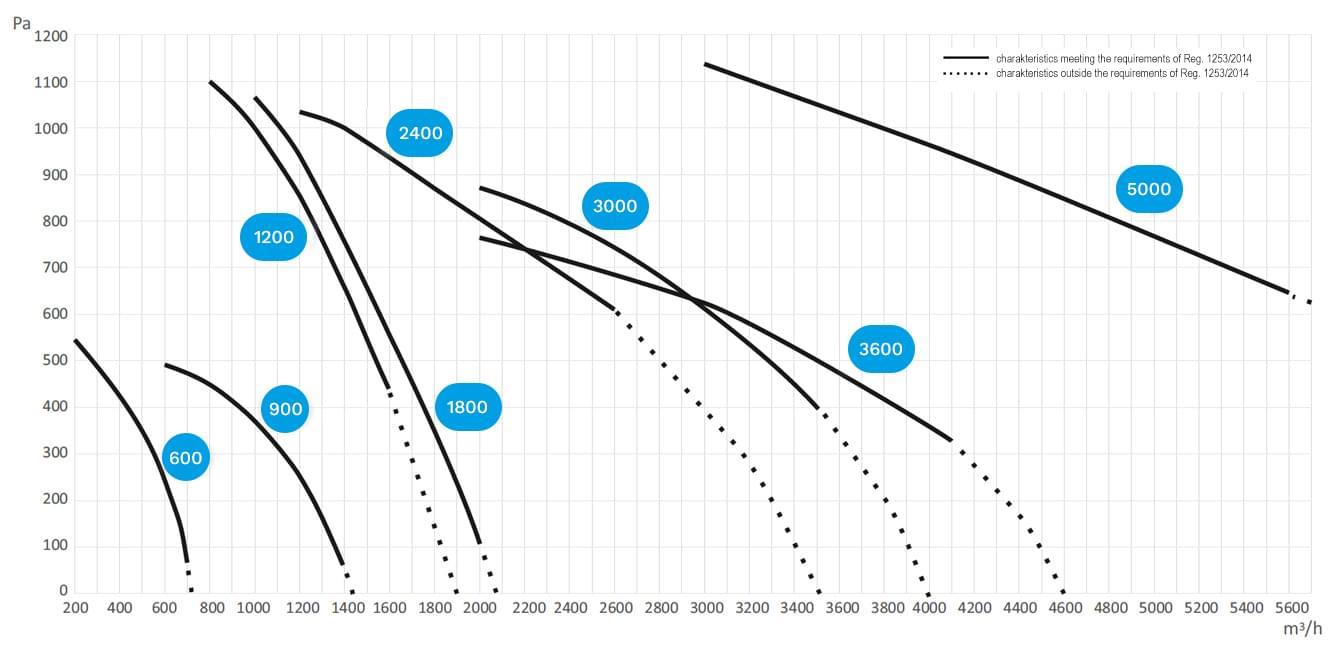

Example power curves

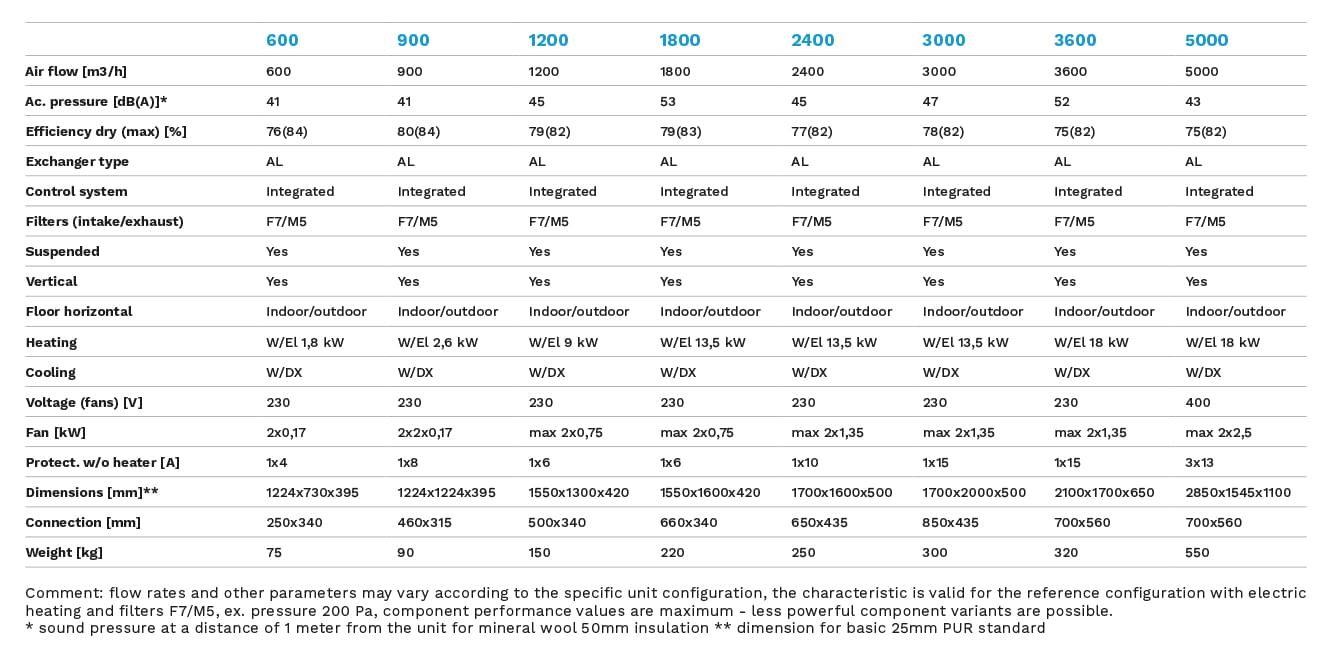

Table of technical parameters

Are you interested in more detailed information about this unit?
