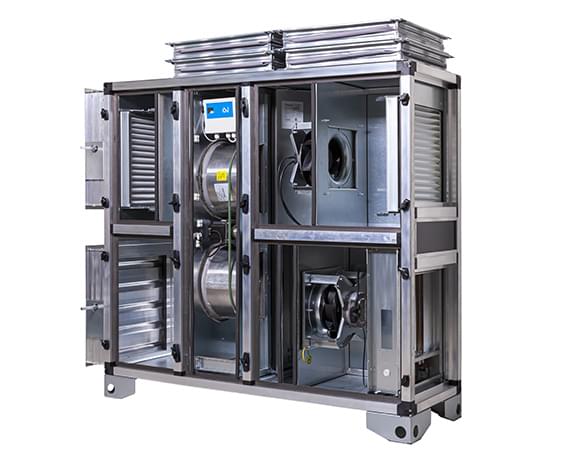

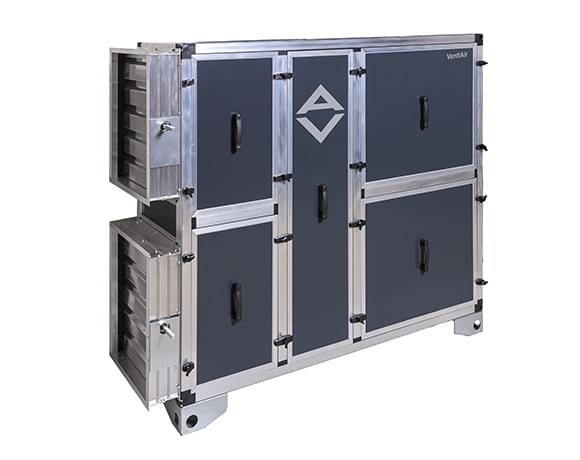

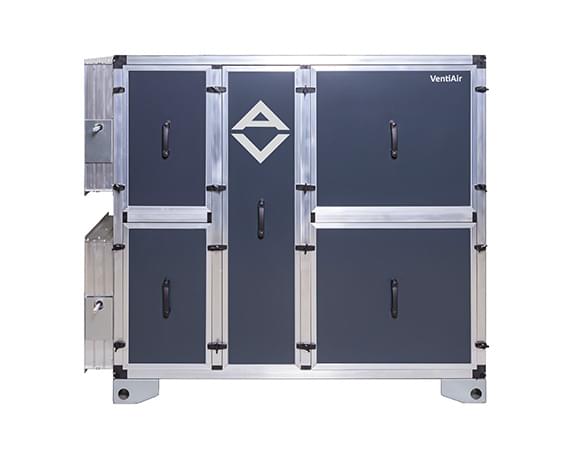

P-TYPE R

Universal compact unit with rotary recuperator

▴ Compact air handling unit with heat recovery
▴ Variant for outdoor operation
▴ Minimum dimensions

Basic description

▴ Two high-efficiency rotary heat exchangers

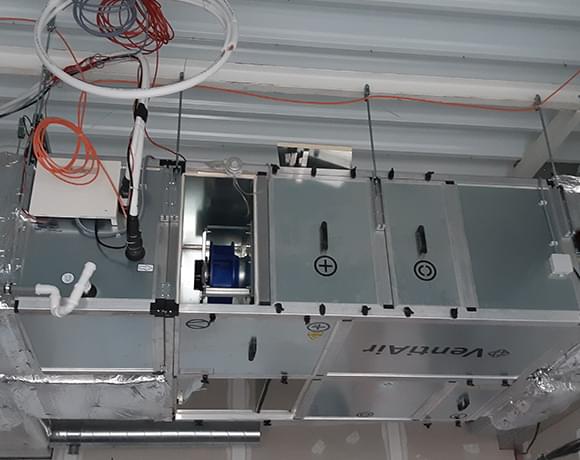

▴ Under-ceiling and parapet design
▴ For ventilation of family houses, offices, shops, restaurants, etc.
▴ Integrated by-pass damper, mixing damper as an option
▴ Low noise construction, 5 sizes
▴ Integrated control
   - Digital controller
   - Calendar, manual control, off-set
   - CO2 inputs, humidistat, external switching of max. speed
   - MODBUS RTU, Ethernet - control via internet
▴ Filtration class F7/M5 as a standard - other variants possible
▴ Constant pressure and constant flow control
▴ Possibility of heating (internal) and cooling (external)

Datasheet (PDF)
Other documents can be found in the Download section.

Technical Specifications

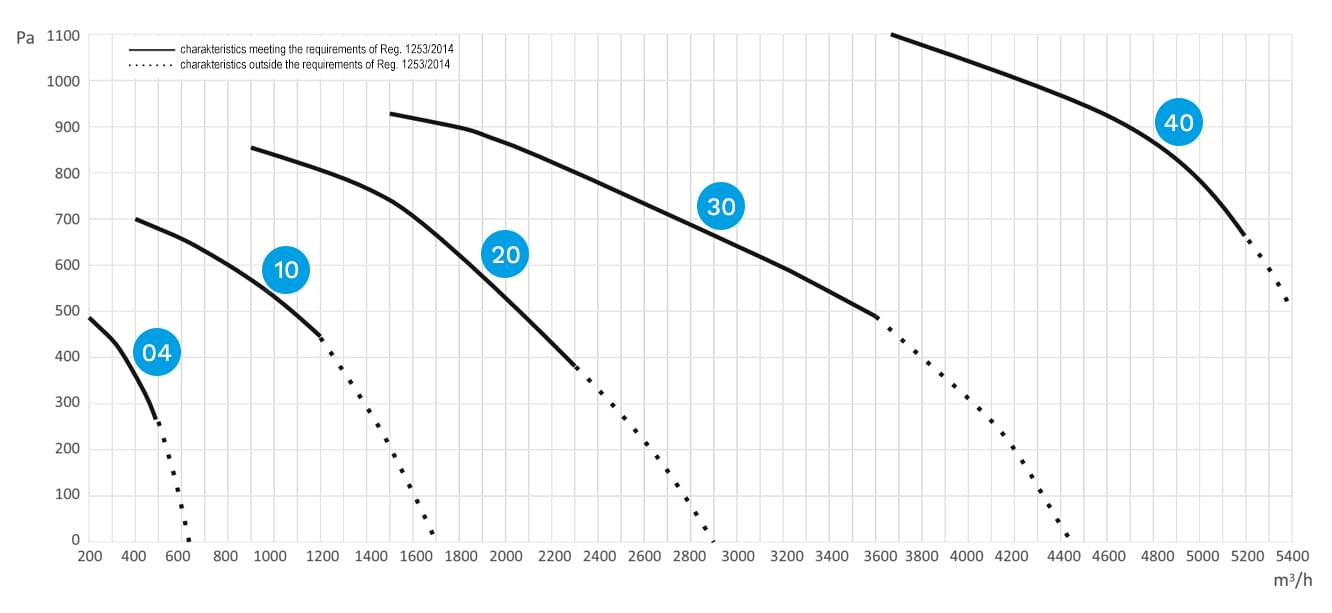

graf p-type r

Example power curves

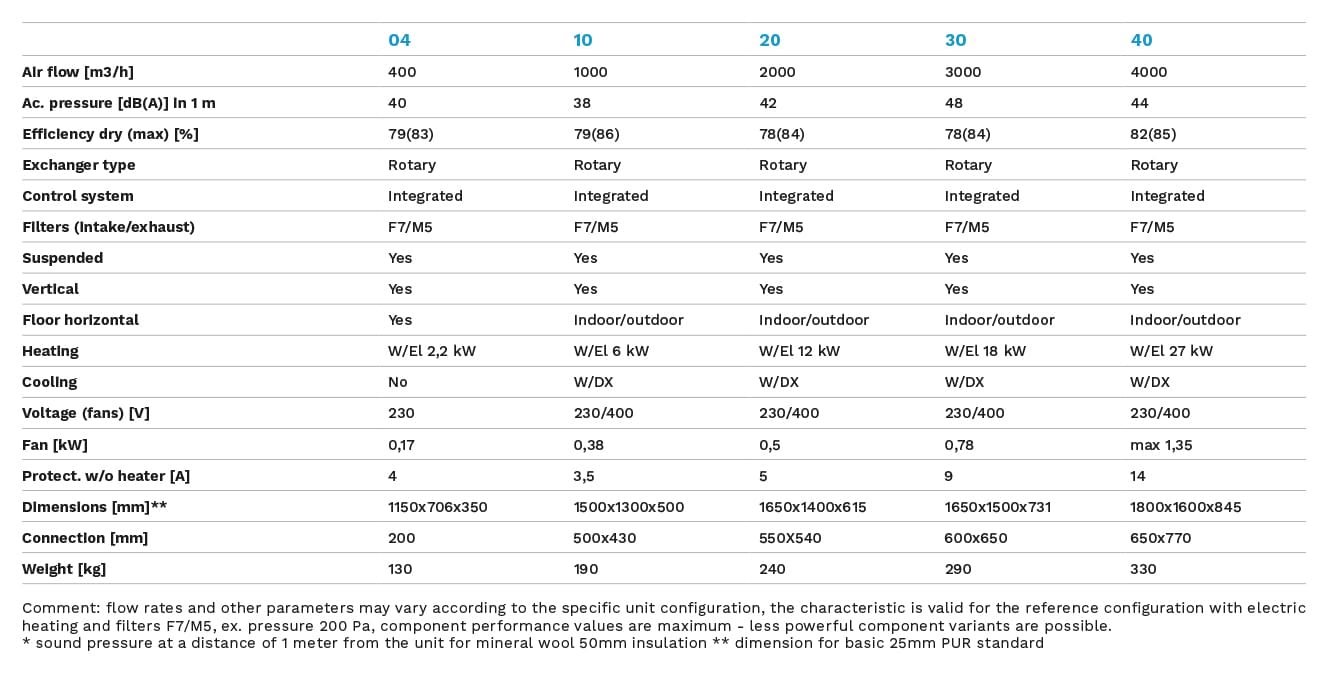

tabulka p-type r

Table of technical parameters

Are you interested in more detailed information about this unit?
